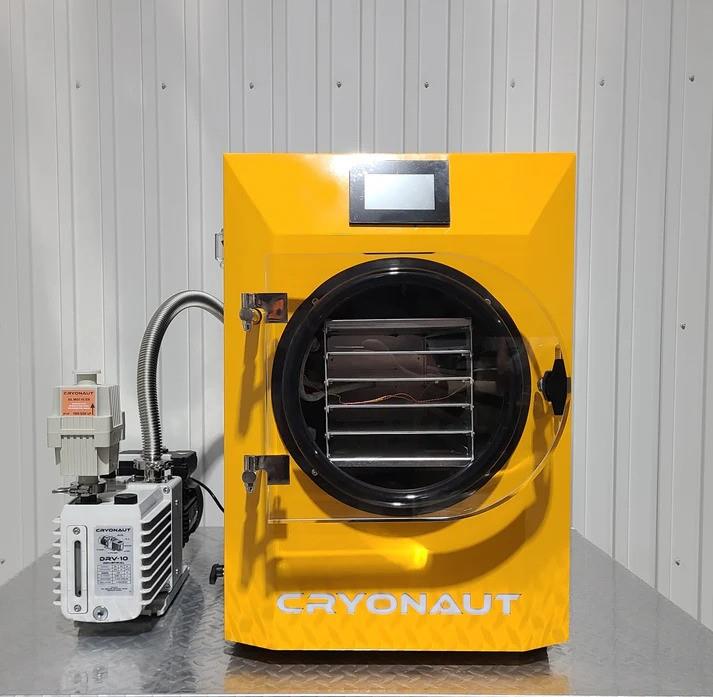

Introducing the newest freeze dryer in the market, crafted to meet the requirements of both enthusiasts and professionals. Built to industrial-grade specifications and inspired by pharmaceutical-grade units, this machine is perfect for commercial use or simply for personal enjoyment at home.
This package includes the DRV10 Vacuum pump, at a discounted price than standalone purchase. (Replaces the regular pump)
It also includes Stainless Steel KF25 bellows.
Unique Features
- WiFi Capability.
- AI Augmented drying algorithm.
- Customizable recipe feature with presets like candy modes, electronics drying, and more.
- Check Valves prevent oil return from the vacuum pump.
- Strainers and optional in-line filters stop food particles from entering the pump.
- 100% Stainless steel vacuum assembly ensures food-grade sanitation.
- Specialized KF connections designed for vacuum use ensure no leaks.
- Flexible KF25 stainless steel vacuum hose with no potential leak points.
- Dedicated repressurization valve, distinct from the drain line.
- Glass-To-Metal sealed feedthrough for wires.
- PID-controlled heating elements using industrial solid-state relays.
- Temperature probe to monitor and expedite drying.
- Thick steel trays ensure efficient drying with optimal heat distribution.
Specifications
- Process up to 7 Kilos (~15 Pounds) on over half a square meter of drying surface
- Average drying time: 14 to 32 hours (often 24 is sufficient)
- Heat up to 65°C (150°F)
- Cold trap temperature: -45°C (-49°F)
- Tray dimensions: 19x54 cm (~7.5" x 21")
- Machine weight: ~80 KG (175 Pounds)
- Vacuum pump weight: 27 KG (60 Pounds)
- Overall dimensions: 730H x 500W x 720L mm
- (Updated: Length is 720mm plus 70mm gasket & door)
What's Included
- DRV10 Industrial Vacuum Pump
- Pump oil and accessories
- Stainless steel vacuum hose
- Power cables and instruction manuals
- 5 trays
Installation Recommendations
A dedicated 20 Amp electrical outlet, no extension cords.\
Do not use GFCI type outlets.
Shipping Information
- Freeze dryer is shipped on a pallet in its own box
- Accessories, including the vacuum pump, are in a separate box
- Expected total pallet weight: ~125KG (~275 LB)
- Customers in the united states may have to pay their state's taxes upon delivery
EXPECTED SHIPPING IN 12-16 WEEKS FOR ALL PREORDERS
